Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Kaadas
Model Number:
L7-5
Key Feature1:
Fake PIN code feature
Key Feature2:
Double authentication
Key Feature3:
User-friendly access
Material:
Zinc Alloy
Usage:
Office/department/bedroom/public place/school
Color:
Black
Applicative Door Thickness:
38-60mm
Unlock way:
Fingerprint/card/password/key
Power Supply:
8pcs DC 6V AA Battery
Product Name:
Kaadas L7-5 Keyless High Security fingerprint Lever Smart Lock
Selling Units:
Single item
Single package size:
51X12.5X33 cm
Single gross weight:
5.5 kg
Package Type:
Picture Example:


Lead Time :
| Quantity(Set) | 1 - 80 | 81 - 100 | >100 |
| Est. Time(days) | 3 | 7 | To be negotiated |
Product Description

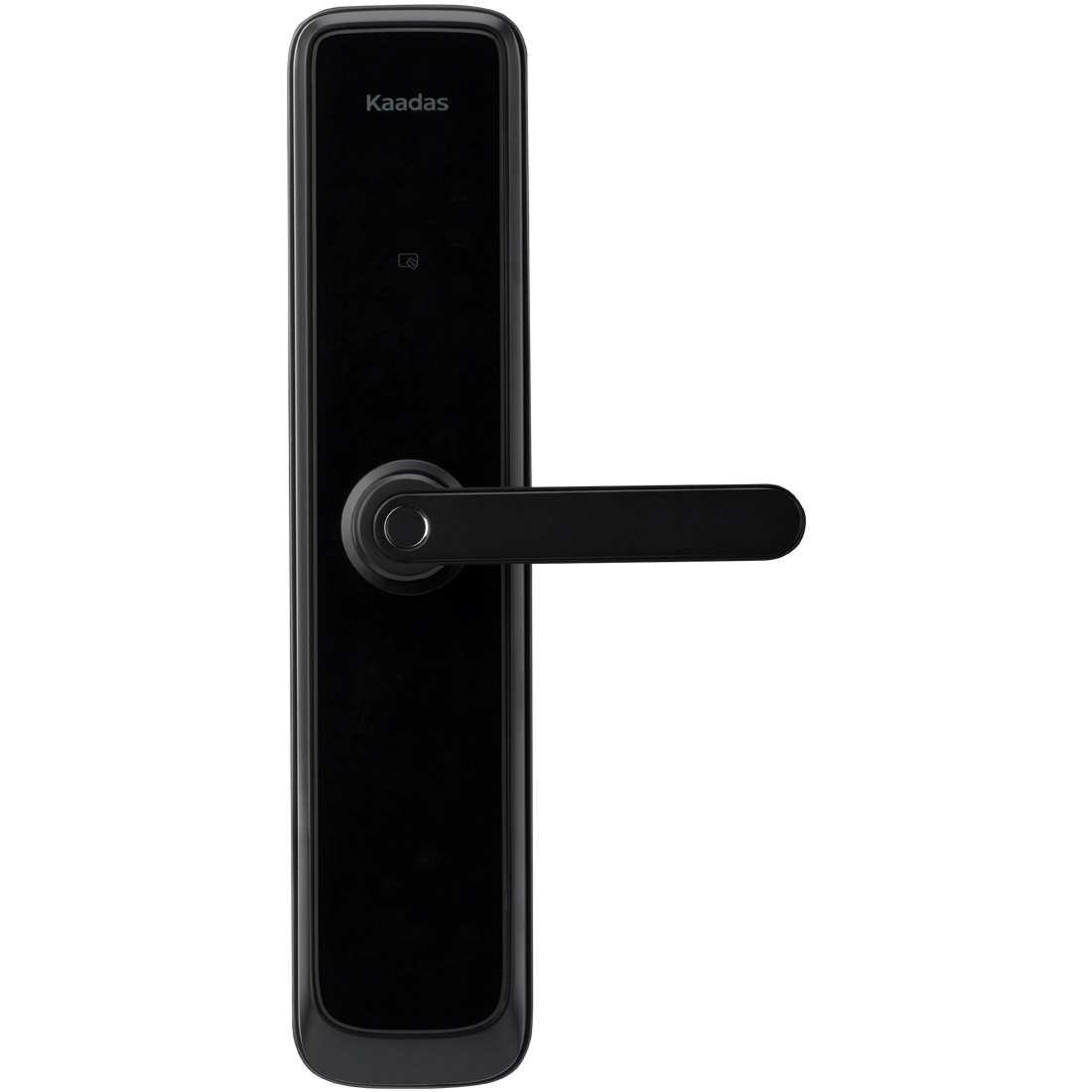

Kaadas L7-5 Keyless High Security fingerprint Lever Smart Lock
-Smart Lever Locks
Model | L7-5 |
Material | Zinc alloy |
Dimension(mm) | Front - 363*81*77 mm (including handle) Back - 360*85*81 mm (including handle) |
Used for | Office/apartment/villa |
Sliding closure | None |
Voice operation guide language | English |
LCD display | None |
Applicative Door | Wooden doors, metal doors |
Applicative Door Thickness | 38-60mm,60-90mm |
Color | Black |
Type of lock body | Automatic Lock body |
Unlocking way | Fingerprint/Card/password/key |
Master Password | 1 |
User Password | 10 |
Password length | 6-12 digits |
Type of card | RFID,Mifarel,IC,S50,S70 |
Card capacity | 100 |
Type of FPG | Semi-conductor |
Identification time | <0.5 sec |
Fingerprints Capacity | 100 |
Double Locking mode | Automatic |
Power Supply | DC 6V AA Battery |
Emergency power supply | Micro USB port |
Battery life | 12 months |
Mechanical cylinder&key | Have |
Working temperature | -20℃-55℃ |
Working humidity | 15%-90%RH |
Lockbody | SD7260 |
Anti panic | Yes |
Opening direction | Universal |
Center distance | 72mm |
Backset | 60mm |
Do you need more information? Click and let's start communicate! | |
MULTI-UNLOCKING WAY |
FINGERPRINT |
PASSWORD |
CARD |
MECHANICAL KEY |
CELL PHONE(Bluetooth,Z-wave) |
Detailed Images






Product Features
Convenience
* User-friendly access
Various access methods depending on your life style - Fingerprint/ Passwords/ RF Card / Mechanical Override Key/ Smart Phone
* Sensitive Touch pad screen
Due to the wide touch screen with tempered glass material, the design becomes more stylish and the detection rate gets improved.
* Just one step to open
Fingerprint sensor is placed on the handle, brings you easy and fast intuitive door opening experience
* Automatic locking
Eliminates the need to re-check for the door lock when you go out. Feel at ease when you go out and keep your home safe.
* Auto polling
RF card is instantly authenticated for access without the need to press the wake-up button
* Easy Installation
Patented Mortise design is applied for installation regardless the door open direction. Both left open and right open available.
Enhanced Safety
* Sweden FPC Fingerprint Sensor
Provides accurate and swift recognition with speed of less than 1 second
* Fake PIN code feature
It is the random numbers that is added before and after the real user password
this prevents the user password from being exposed, which provides more protection for real password
* Double authentication
This mode strengthens security. Password plus fingerprint /card must be authenticated to open the door.
* Defense mode
When leaving, the user can set up the anti-theft mode by simply pressing [0] button,
preventing intrusion by creating a warning sound.
* In home security (Double-locking)
When you are at home, double-locking prevents unexpected unlocking attempts from outside. You can enable it by using the [CLOSE] button
* Safe Handle
Once safe handle is enabled, the indoor handle will be locked up. In this case, it can remove the hidden danger for the door with peephole mounted, and also has lock function for children
Smart Function
* Power bank back-up
When batteries are discharged, put 5V power bank to back-up power.
* Low battery warning signal
A voice sound and LED light during door access will alert you to replace batteries.
* Interface with IOT module
The lock has an interface with Bluetooth or Z-wave home automation to unlock the door
* Master function
Fingerprints/Passwords/Card sets are available for the master PIN Code for overall management.
