Products Description
Equipment parameter | ||||
Eguipment type | HDRCDI-7KW-1 | HDRCDJ-20KW-1 | HDRCDI-30KW-1 | HDRCDJ-40KW-1 |
| National standard / European standard / American standard | National standard ` European standard \ American standard | National standard \ European standard ` American standard | National standard ` European standard \ American standard |
Input voltage range | 220V ±15% | 380±15% | 380±15% | 380±15% |
Frequency range (Hz) | 50/60 ±10% | 50/60±10% | 50/60±10% | 50/60±10% |
| ≥0.99 | ≥0.99 | ≥0.99 | ≥0.99 |
Current harmonic (THR) | ≤5% | ≤5% | ≤5% | ≤5% |
Efficiency | ≥96% | ≥96% | ≥96% | ≥96% |
Output voltage range | 200-1000V | 200-1000V | 200-1000V | 200-1000V |
Constant power range (V) | 300-1000V | 300-1000V | 300-1000V | 300-1000V |
| 7 KW | 20KW | 30KW | 40KW |
Maximum output current | 20A | 50A | 80A | 100A |
Charging interface | 1 | 1 | 1 | 1 |
| 5m (Line length can be customized) | 5m(Line length can be customized) | 5m(Line length can be customized) | 5m(Line length can be customized) |
Other information | ||||
| ≤±0.5% | ≤±1% | ≤±1% | ≤±1% |
Output current error | ≤±1% | ≤±0.5% | ≤±0.5% | ≤±1% |
Output voltage error | ≤±0.5% | ≤±1% | ≤±1% | ≤±0.5% |
Degree of unbalance | ≤±0.5% | ≤±0.5% | ≤±0.5% | ≤±0.5% |
Communication mode | Standard communication protocol/OCPP | Standard communication protocol/OCPP | Standard communication protocol/OCPP | Standard communication protocol/OCPP |
Heat dissipation control | Forced air cooling | Forced air cooling | Forced air cooling | Forced air cooling |
Class of protectian | IP55 | IP55 | IP55 | IP55 |
BM5 ausdtiary power suppty | 12V | 12V | 12V | 12V |
ReiaЫity (MTBF) | 30000 | 30000 | 30000 | 30000 |
Dimensson(w*D*Hmm | 460*246*670(wall hanging) | 460*450*1500(Fall to the ground) | 460*246*670(Wall hanging) | 460*246*670(Wall hanging) |
Routing mode | Down line | Down line | Down line | Down line |
0perating ternperature (*c) | -20~+50 | -20~+50 | -20~+50 | -20~+50 |
Storage temperature (*C) | -20~+70 | -20~+70 | -20~+70 | -20~+70 |
Option | Swipe card, scan code, operation platform | Swipe card, scan code, operation platform | Swipe card, scan code, operation platform | Swipe card, scan code, operation platform |
Man-machine display | 7 inch display | 7 inch display | 7 inch display | 7 inch display |
Products Series
⭐Ac charging pile
✅3.5KW-21KW Single gun/ Two gun
✅ Various types can be customized CCS1 CCS2 GB/T
✅Save installation space. Supports installationboth indoors and outdoors
✅Waterproof & Dustproof
✅Endure various harsh weather conditions
✅Can withstand wind,rain,snowand extreme temperatures

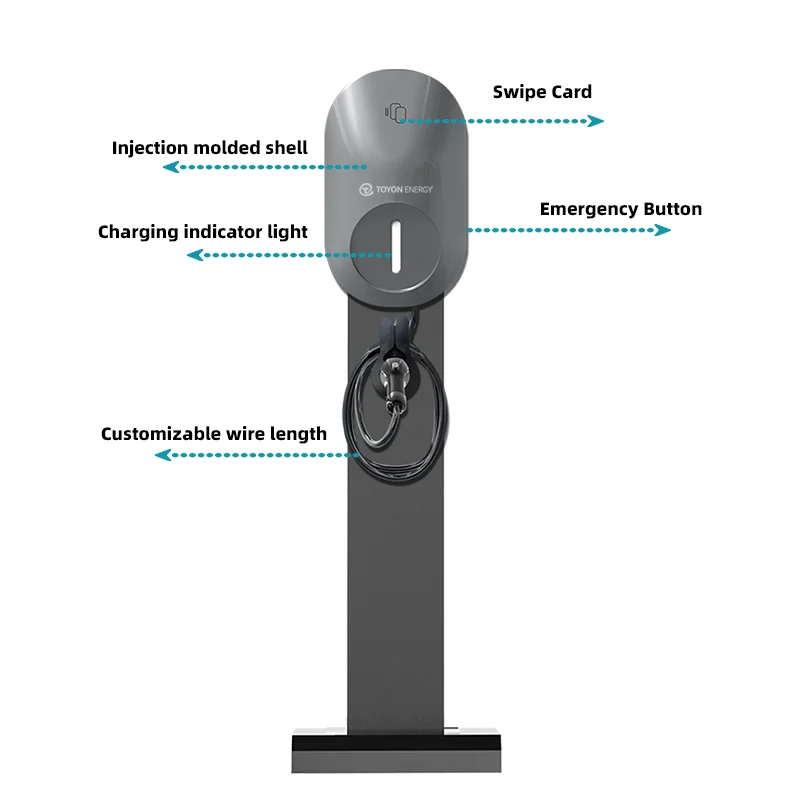

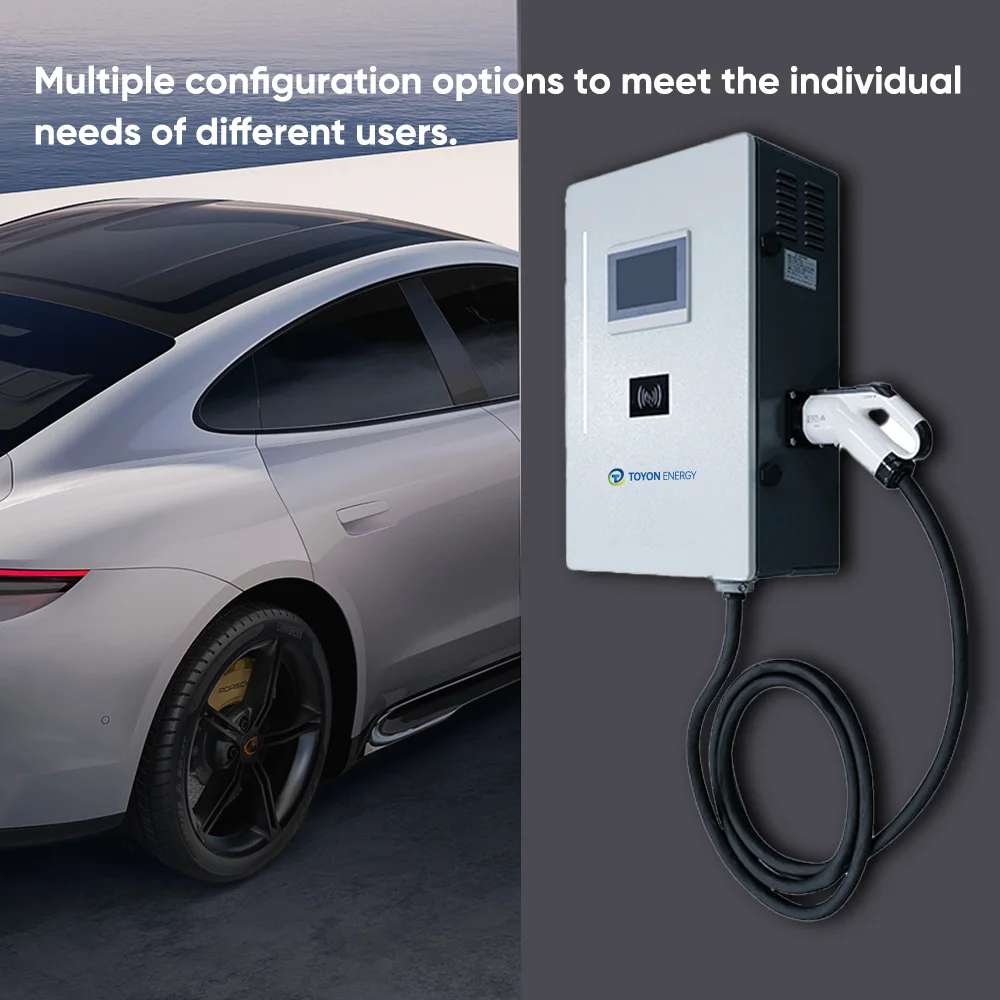

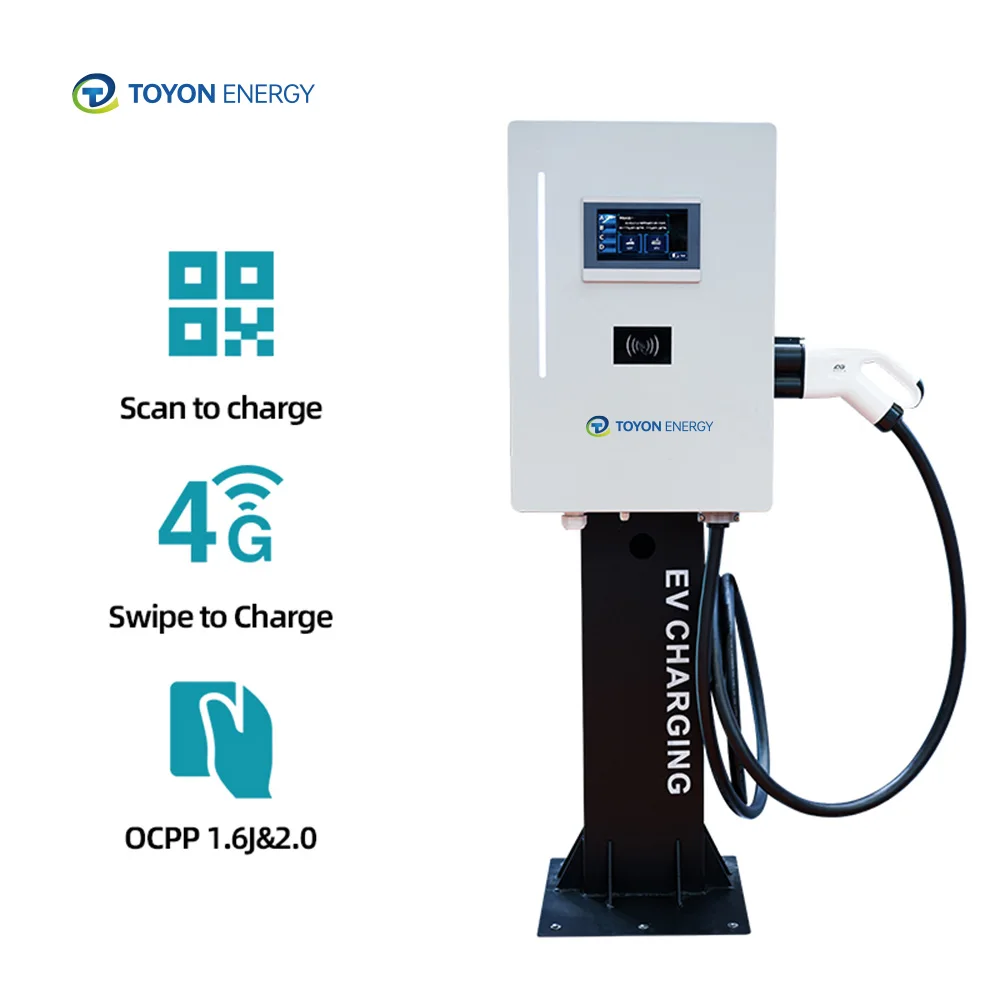

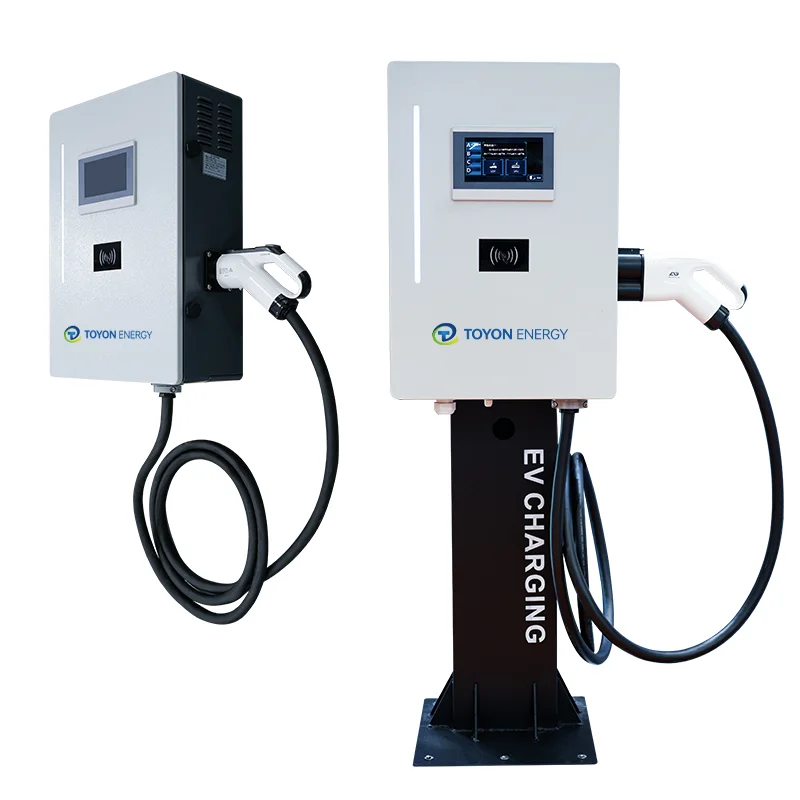

⭐Wall-mounted/column DC charger
✅7KW/20KW/30KW/40KW Single gun
✅ Meet charging needs for Commercial charging station and other locations
✅IP55 Waterproof and Dust+Proof
✅DC EV CHARGER 7KW-40KW
✅Scan to charge
✅Swipe to charge

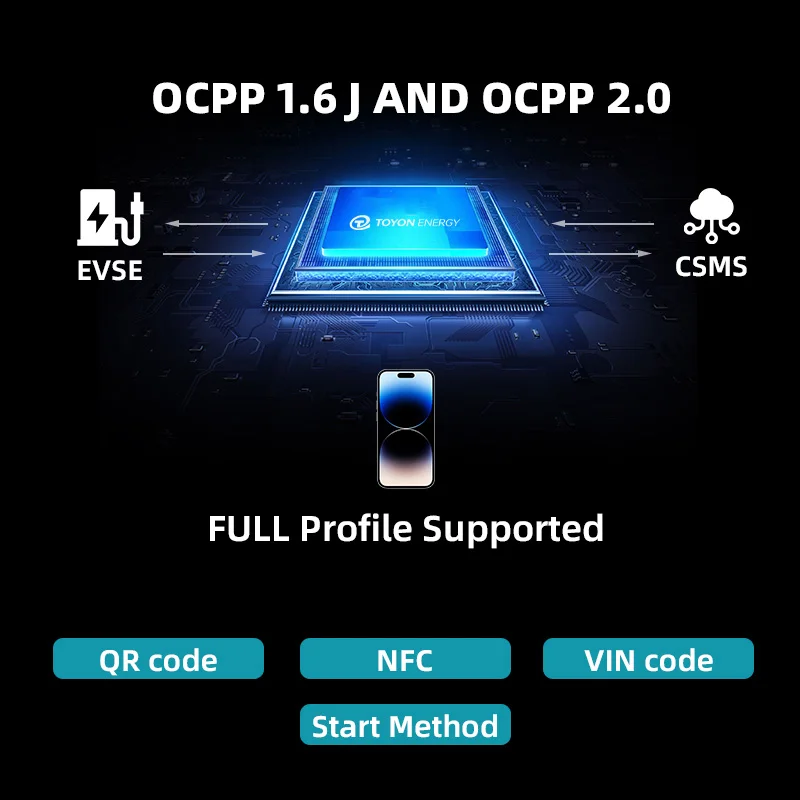

✅OCPP 1.6J&2.0

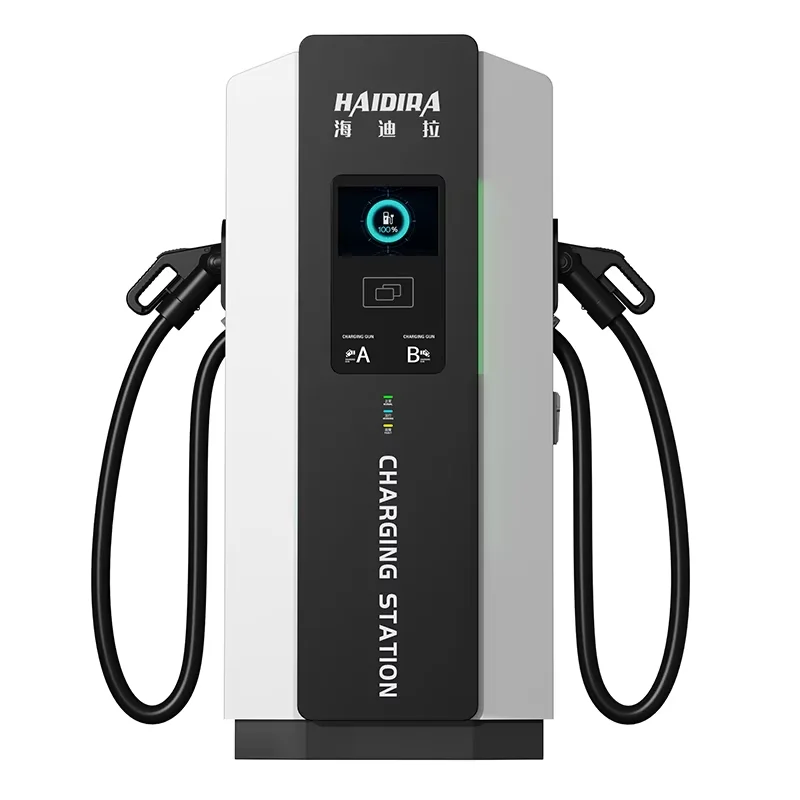

⭐Integrated DC charger
✅60KW-360KW

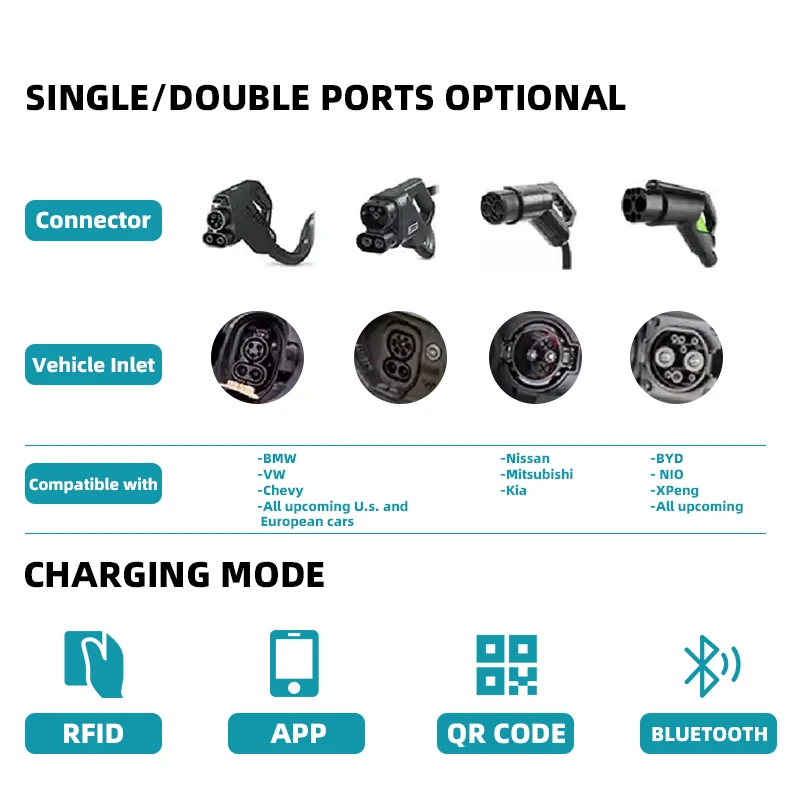

✅Single/Double Ports Optional

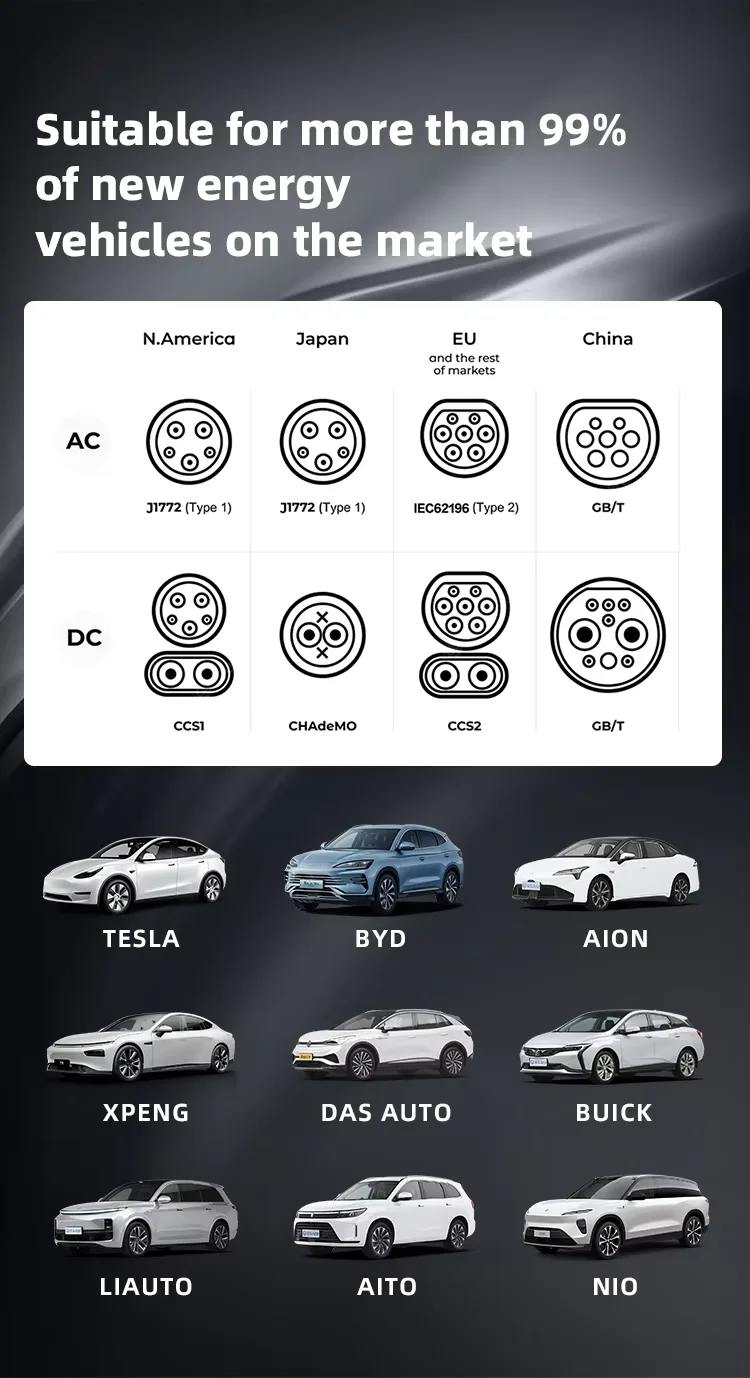

✅Compatible with EVS Suitable for 99% new energy vehicles Fast charging
✅IP55 protection
✅Wifi connection
✅Short circuit protection
✅Thermal protection
✅APP control

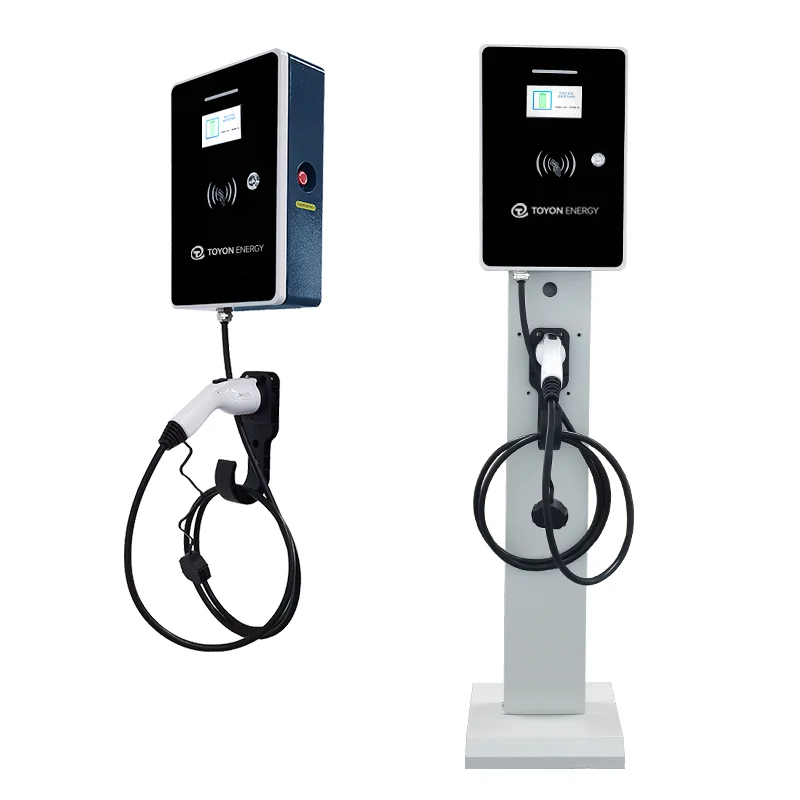

⭐Ac charging pile
✅7KW/11KW Single gun
✅Various types can be customized CCS1 CCS2 GB/T
✅Save installation space. Supports installationboth indoors and outdoors
✅IP65 dustproof and waterproof
✅PC+ABS flame retardantmaterial
✅National standard grade oxygen-free purecopper wire core
✅16 safety protection

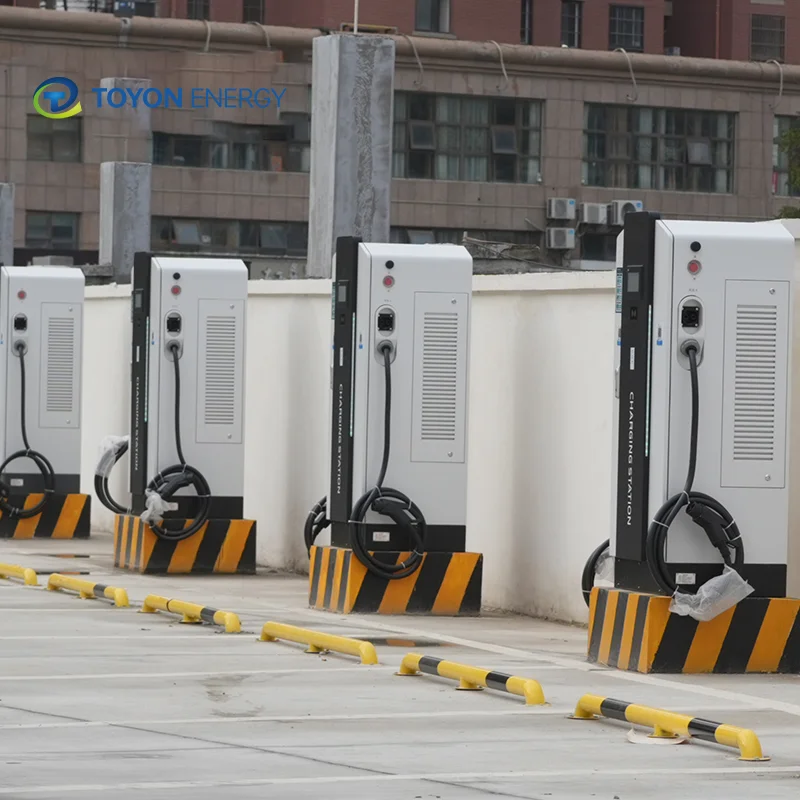

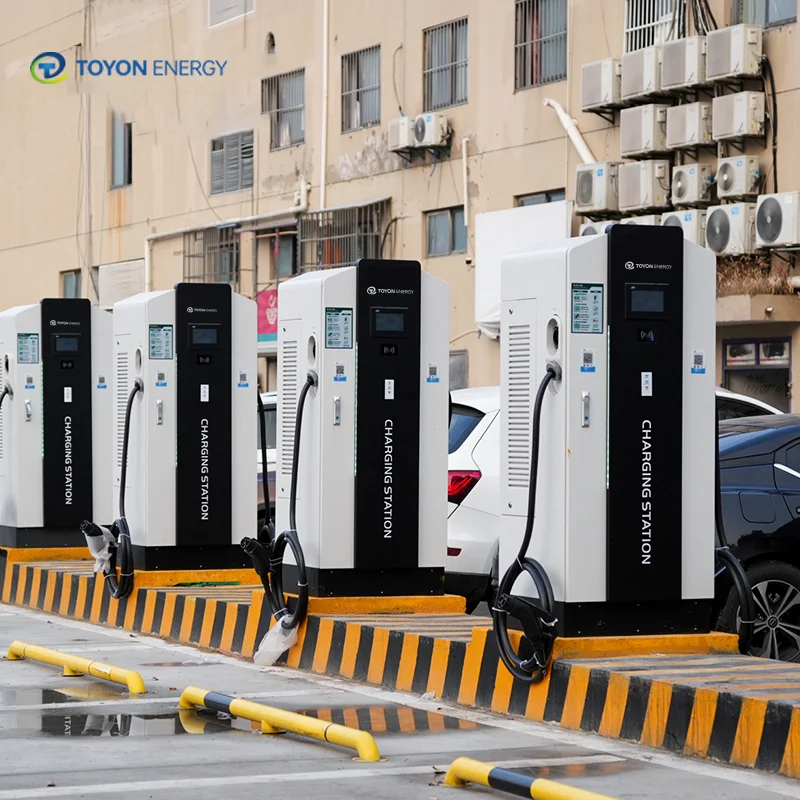

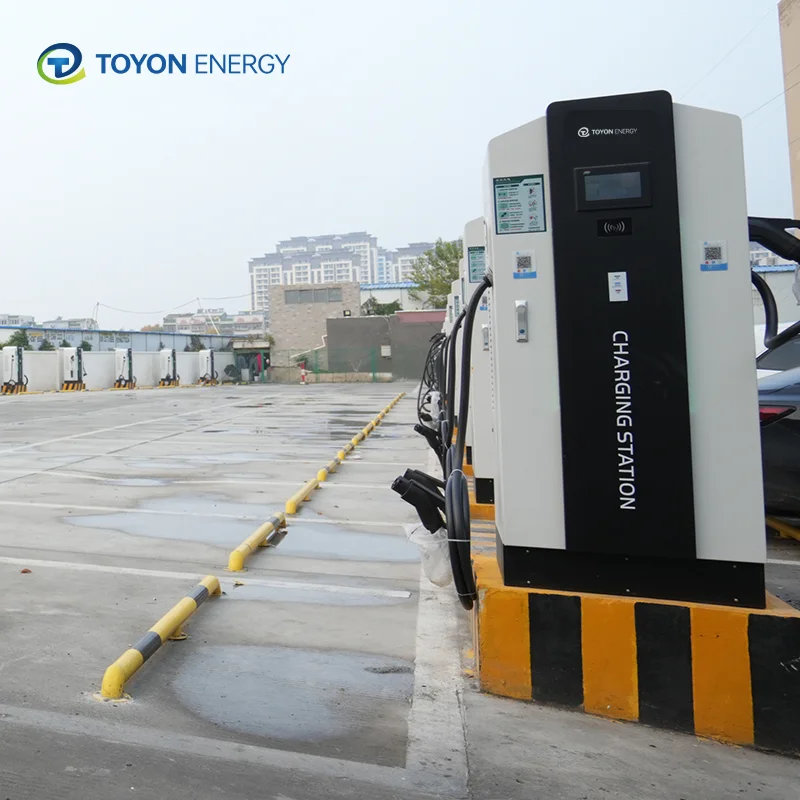

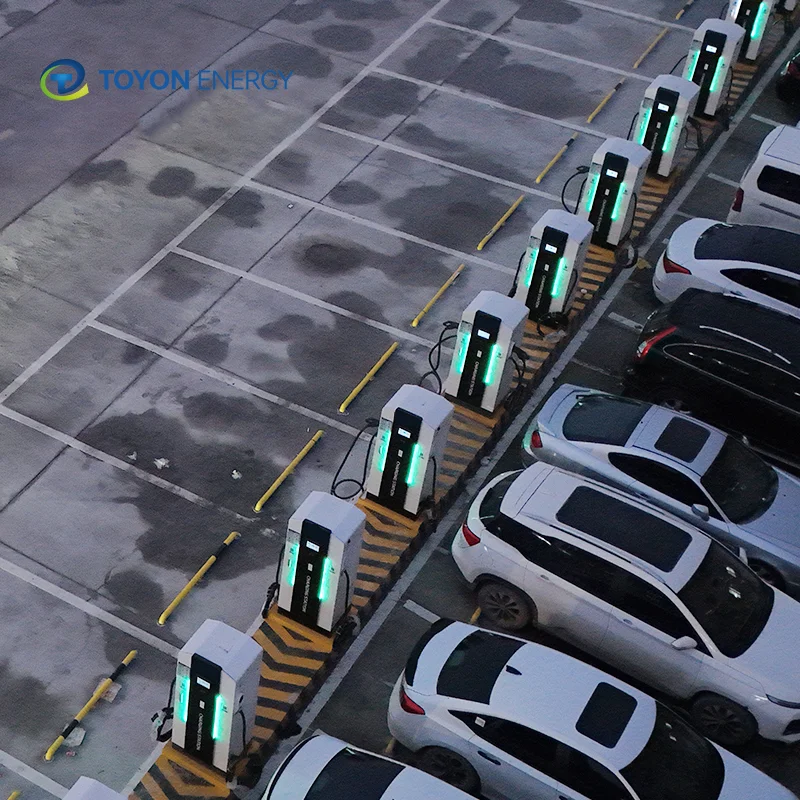

Project Cases

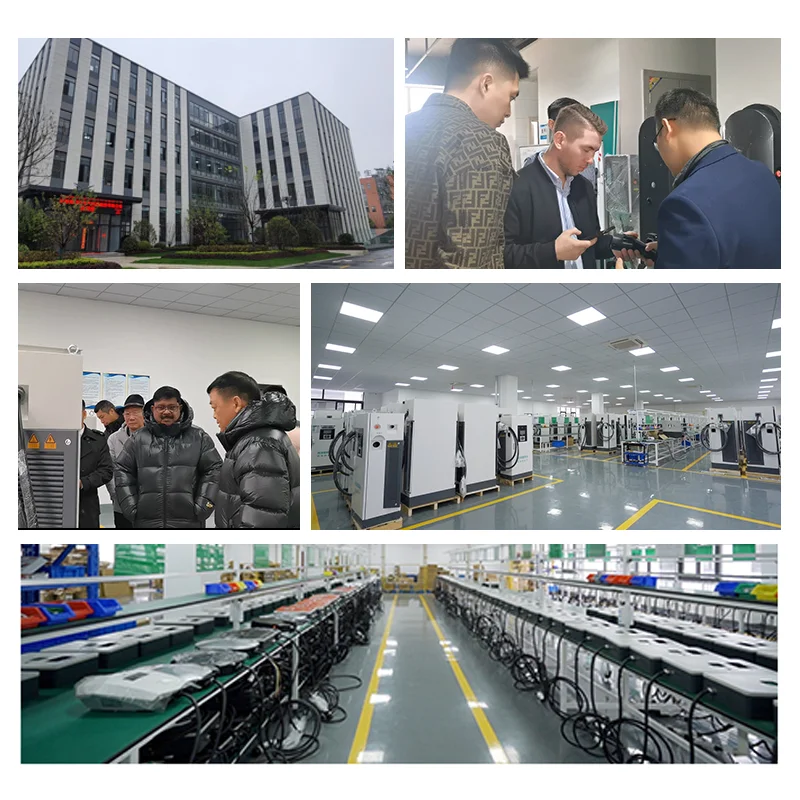

Company Profile
Why Choose Us
Toyon Energy is a professional factory leader in the PV industry, we offer solar photovoltaic all in one system and one-stop services with competitive prices and fast delivery time and we insure our quality is second to none.
* Higher power generation
* Competitive price
* High quality standard
* Stable supply chain guarantee
* Customized service
FAQ
1.What main products can you provide?
We can provide many series of solar products, mainly producing the solar panels, solar inverters, power wall, lithium ion batteries, gel batteries and also all in one solar system solution according to your needs.
2. How is your technical support?
We can provide lifetime online support through WhatsApp/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime.
3. What about the lead time?
We can always deliver within 5-15 working days.The common products we always have the stock, it can be sent out within 15 days. While the big order needs to negotiate the finish production time and promise it to our customers.
4. Can you provide OEM service?
Yes, as a professional solar system manufacturer, we can provide customer-made service with OEM and on-site installation comprehensive support, and after-sales services.
5. How can we guarantee quality?
We can provide a pre-production sample before mass production and also final inspection before shipment. We can also provide 24-hour after-sales service. Regardless of the time difference, we will solve the problem for you as soon as possible.
6. What's the payment term?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU.
Accepted Payment Type: T/T, L/C, PayPal.
