Product Description
Product Features
·Proportional remote controlle and proportional valve (optional)
The crane can be controlled remotely, and the lifting weight can be moved gradually.
·Moment limiter(optional)Accurately display the weight of the object being lifted, and protect the safety of the lifting arm during the lifting operation.
·Outrigger by remote control (optional) It can operate the outrigger in close range to avoid accidents caused by invisible outrigger operation in complex environment.
·U boom (optional)Reasonable structure, 1 weld, large contact area between boom, high strength, long life.
·Take the elevatorFuselage width 600mm, can enter 3 ton elevator or indoor operation.
·One key tor the level of body (optional)Depending on the surrounding environment, the outrigger can be operated independently or controlled by the computer at the same time to achieve one-key leveling and keep the body in a horizontal state.
·Interlock system (optional)After the boom is reset, the supporting leg can be operated and the crane can move safely.
·Travel available by forklift truckConvenient forklift transport, the crane has a insertion position.
·Remote control walking (optional)The machine can be operated at a long distance to walk, in the harsh environment, can better protect the safety of people.
·Sensor of outrigger on the groundEach leg is equipped with an earthing sensor. When the leg leaves the ground in danger, the machine will alarm and stop working.Make sure the machine doesn't tip over.
Product Parameters
Model | GMHSC1.0 | |
Specification | 1.0T x 1.5m | |
Maximum Working Radius | 5.07m x0.2T | |
Maximum Ground Lifting Height | 5.6m | |
Maximum Underground Lifting Height | 18m | |
Winch Device | Hook Speed | 10m/min(2 ) |
Rope | 7.7mm x48m | |
Telescopic System | Boom Type | Full automatic 4 section |
Boom Length | 2.08m-5.5m | |
Up and Downs | Boom Angle/Time | 0° ~75° /14sec |
Slew System | Slew Angle/Time | 0° ~360° (Continuous )/40sec |
Outrigger | Outrigger Active Form | Automatic for the 1 section, manual adjustment for 2,3 section |
Maximum Extended Dimensions | 3600mm x 3200mm | |
Traction system | Walking Way | Hydraulic motor driven |
Walking Speed | 0-3.2km/h | |
Grade Ability | 20° | |
Ground Length x Widthx2 | 960mmx 180 mmx2 | |
Ground Pressure | 35.6kpa (0.356 kgf/cm2) | |
Diesel Engine | Model | (HONDA) GX270 |
Displacement | 270ml | |
Maximum Output | 5.1Kw/1800rpm | |
Starting Method | Electric starting | |
Fuel/Tank Capacity | Petrol/6L | |
Safety Devices | Outrigger automatic detection alarm/ level/ Intelligent leveling/ Emergency stop button | |
System Voltage | DC12V | |
Dimension | Length x Width x Height | 2140mm x 600mm x 1413mm |
Weight | Vehicle Weight | 1230kg |
Lifting Table at Maximum Extended Outrigger
2.08m boom | 3.22m boom | 4.36m boom | 5.5m boom | ||||
Working Radius | Rated Load | Working Radius | Rated Load | Working Radius | Rated Load | Working Radius | Rated Load |
(m) | (t) | (m) | (t) | (m) | (t) | (m) | (t) |
<1.5 | 1.0 | <1.5 | 1.0 | <1.8 | 0.85 | <2.5 | 0.65 |
1.65 | 0.92 | 2.0 | 0.8 | 2.0 | 0.8 | 3.0 | 0.53 |
2.5 | 0.65 | 2.5 | 0.65 | 3.5 | 0.4 | ||
2.79 | 0.56 | 3.0 | 0.53 | 4.0 | 0.32 | ||
3.5 | 0.41 | 4.5 | 0.27 | ||||
3.93 | 0.33 | 5.00 | 0.21 | ||||
5.07 | 0.2 | ||||||
The above data is measured when outriggers are at the maximum level on solid ground.The outriggers' state and surface conditions may have resulted in the crane tipping, please pay more attention when operate. ·Total rated lifting capacity include hook (20Kg) weight.
Our service
Better Trading Service to Benefit Global Customer
1.All the machines will be full tested before shipment

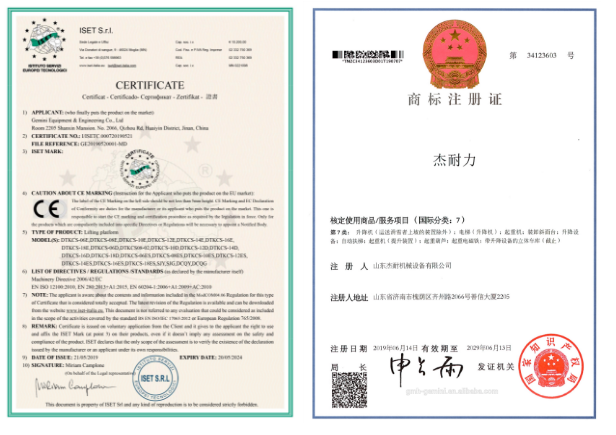

Certifications
