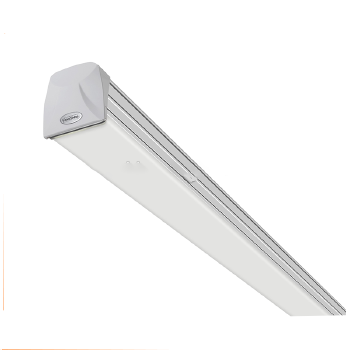

SAA CB UL listed linkale led linear light fixtures linear panel light

Quick Details

• Warranty(Years):

• 5

• Input Voltage(V):

• AC220~240V

• Lamp Luminous Flux(lm):

• 5600(@CCT=4000K)

• CRI (Ra>):

• 80

• Working Temperature(℃):

• -20 - 40

• Working Lifetime(Hour):

• 50000

• Lamp Body Material:

• Stain steel +PMMA lens/PC cover

• IP Rating:

• IP20/IP54

• Certification:

• C-tick, CE, EMC, GS, LVD, RoHS, SAA, UL

• Place of Origin:

• Guangdong, China (Mainland)

• Brand Name:

• CORESHINE

• Model Number:

• CSSL-1535-05WH

• Light Source:

• LED

• Beam angle:

• 25°,60°,90°,120°,asymmetrc(right/left),double asymmetric

• Optional function:

• Dimmable(DALI/1-10V), Emergency, Sensor,Track spot light

• Length:

• 1500mm;3000mm

• Power:

• 35W,50W,70W;70W,100W,140W

• Trunking rail:

• 5/8/12 wires

• Housing color:

• White,Black, Silver

• PF:

• >0.95

• THD:

• <15%

• Node connector:

• L/T/X can be option

• Application:

• supermarket,warehouse,workshop,retail shops,office,etc

• Item Type:

• Panel Lights

• Lamp Power(W):

• 35

• LED Light Source:

• SMD 2835

• Lamp Luminous Efficiency(lm/w):

• 160

• Color Temperature(CCT):

• 3000K,4000K,5000K,6000K

Supply Ability

• Supply Ability:

• 2600 Piece/Pieces per Day

Packaging & Delivery

• Packaging Details

• 1.5M Luminaire: 10pcs/carton, gross weight around 28KGS;
  1.5M Trunking rail: 10pcs/carton, gross weight around 23KGS.

• Port

• SHENZHEN

• Lead Time :

• sample(<200pcs) 7 working days; bulk order 15 working days

Specification
