Product Description
PRODUCT FEATURES
This product is a two-component type, epoxy resin anti-static high-quality easy operating self-leveling top-painting.
Features and Characteristics
Possess all the excellent properties of epoxy mortar (rear film) floor paint, which can quickly leak static charge to the applicable place, and has long-lasting anti-static effect and is not affected by time, temperature, humidity, environmentally, non-polluting, non-toxic.
Technical Data Sheet
SPECIFICATIONS
| Tested item | Unit | Value |
| Adhesion (cross-cut method) | Grade | 1 |
| Impact resistance | kg/cm | 50 |
| Abrasion resistance(750g/500r) | MPA | ≥80 |
| Pencil hardness | Hard | ≥3 |
| Compressive strength | MPA | 80 |
| Stretch strength | MPA | 10 |
| Bending strength | MPA | 15 |
| Drying time | Surface drying | ≥4 |
| Deep drying | ≥24 | |
| Surface electronics resistance (Ω) | Bottom layer/putty layer | No requirement |
| Mortar layer/putty layer | No requirement | |
| Laying copper foil | No requirement | |
| Conduction layer | 1.0x103-1.0x104 | |
| Top layer | 1.0x103-1.0x104 | |
| Volume electronics resistance (Ω) 1.0x103-1.0x104 |
FEATURES
All tests (except the drying time) are performed after curing for 7 days at 25°C.
APPLICATION FIELD
Electronics, communications, printing, computer rooms, precision machinery and meters, powders, chemistry, ordnance, aerospace and other places where anti-static is required, especially suitable for production workshops and storage areas of electronic instruments, integrated circuits and other components that are highly sensitive to static electricity.
APPLICATION GUIDANCE
After the component A is fully stirred and evenly mixed, mix it at the ratio of A:B=16:4, leave it for 5 minutes and then apply it directly. The paint in the paint bucket must be applied within 4-6 hours.
PACKING AND STORAGE
Packing weight: Two-component set: A agent 16kg; B agent 4kg
Storage: this product should be stored in shady, dry, and ventilated warehouse and storage temperature 5-40℃ is appropriate. The shelf life is 12 months at room temperature. If exceeding shelf life, the products shall be tested before using.

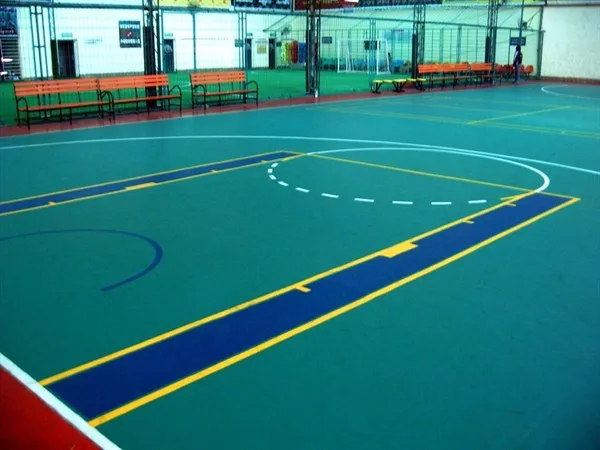

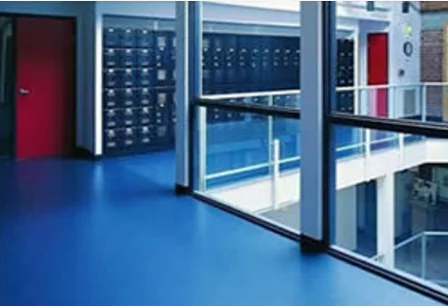

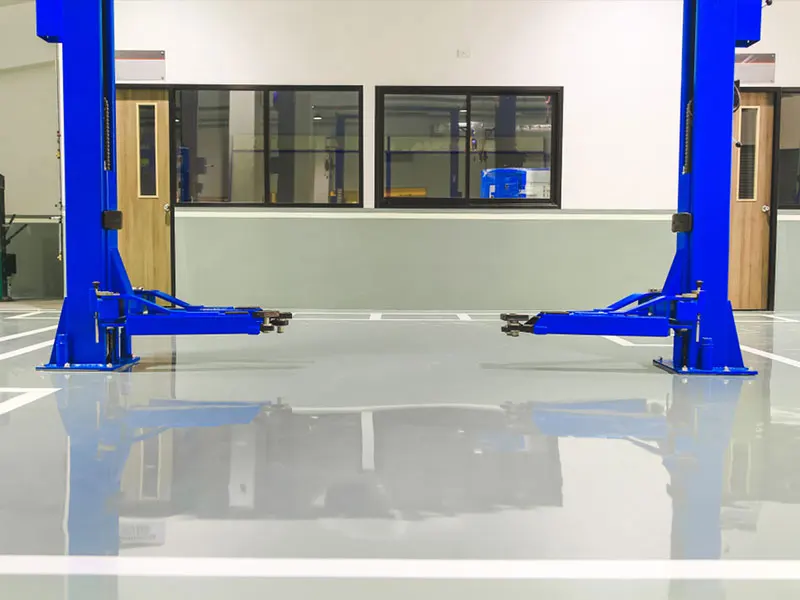

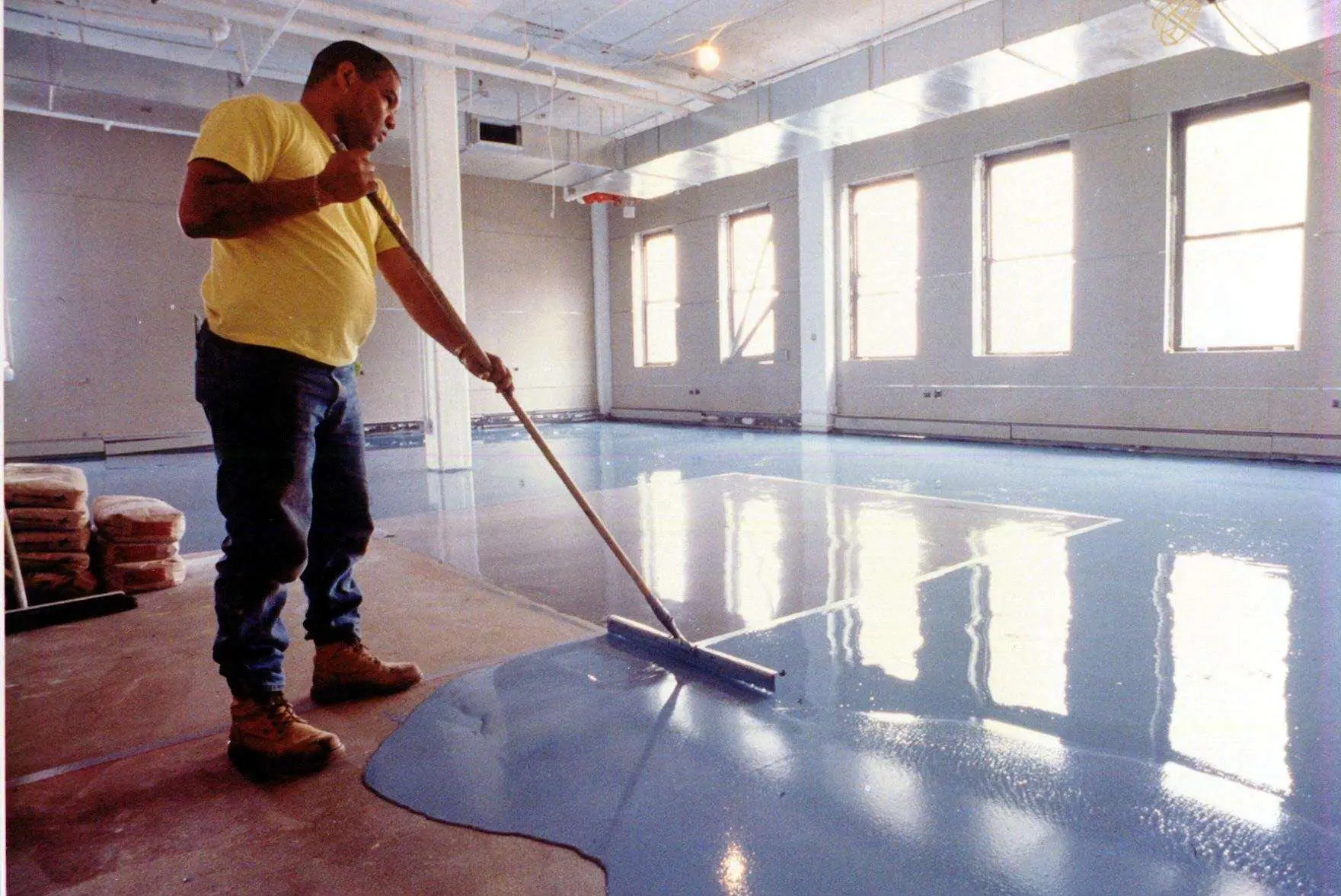

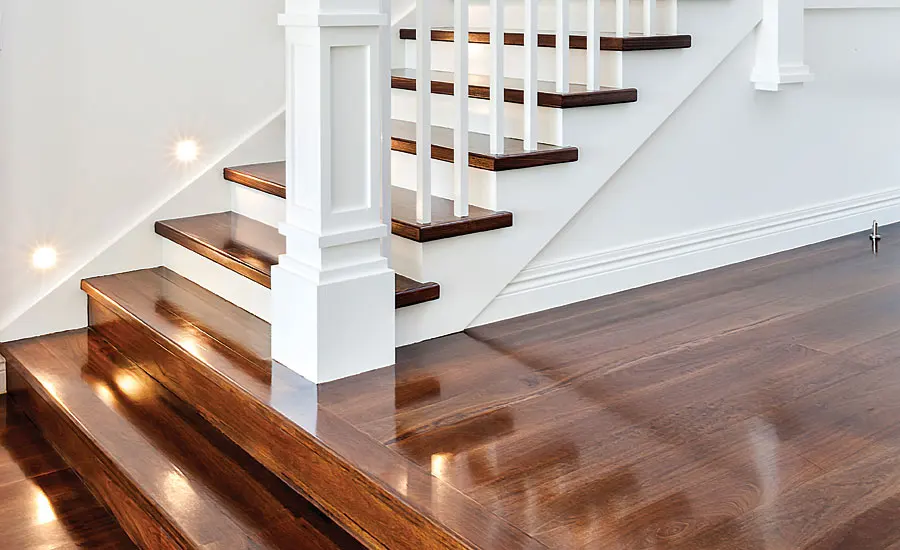

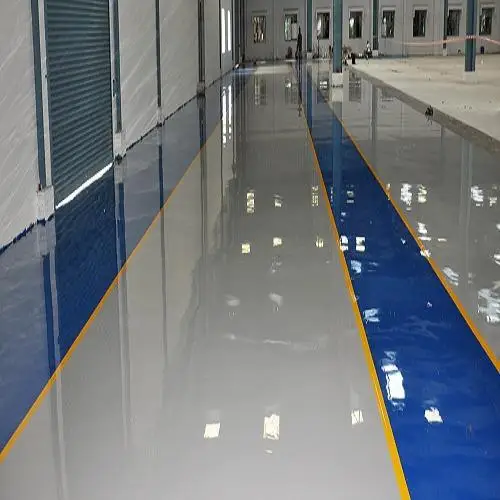

Products Application
Advantages
| QUALITY ADVANTAGE 1. The certification passed:WRAS,TUV,SGS,ISO,etc 2. More than 20 years factory production and R&D experience | TECHNOLOGY ADVANTAGE 1. It has more than 30 patents of paint and coating 2. It is the largest paint and coating production base in the three northeastern provinces of China 3. Set up MAIQI college workstation |
BRAND ADVANTAGE | SERVICE ADVANTAGE 1. Responding to customers` needs with 12hours 2. Ensured delivery within agreed time 3. Technical support through video |
