Project Background
This is description gave to me about the site boundary. And the rest was to design the apartment hotel at Arusha
This is sketch started to plan the building

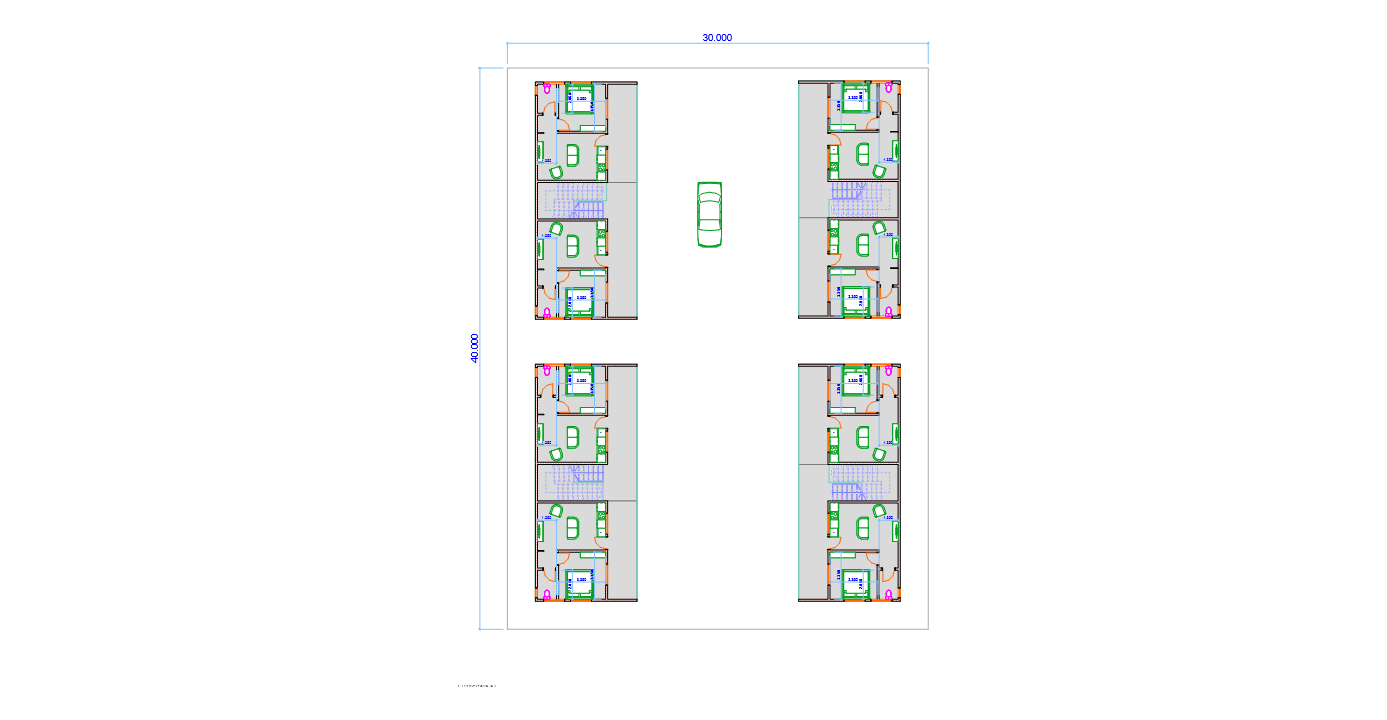

This was first proposal of master plan
This was second proposal of master plan
The chosen master plan was first proposal but the part of the building was denied in order to establish other facilities like barbeque.
This is first proposal 3D view
Master Plan Renderings
This is rendered master plan of the project
The 3d view from the rear area of the master plan
The frontal view of the buildings
Master Plan
The working drawing of the master plan of the project
Exterior Renderings
3d view from the balcony of the first building B
The frontal view of the building A of the project
Floor Plan
This is ground floor plan of the building A
This is first floor plan of the building A
This is roof plan of the building A
This is ground floor plan of the building B
This is first floor plan of the building B
This is roof plan of the building A
Elevation Plan
Front and Rear Elevation of the building A

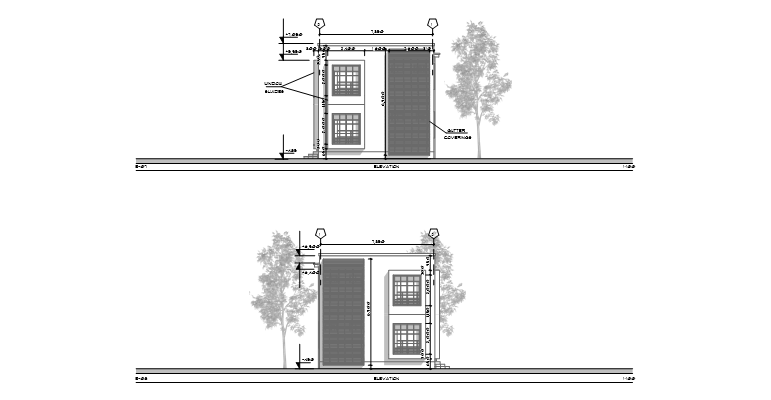

Side Elevations of the building A
Front and Rear Elevation of the building B
Side Elevations of the building B
Section Plan
Building Section of the building A
Side Elevations of the building B
Architectural Rendering-Main Gate
This main entrance of the apartment
